Dashboard Quick Start

Start up Row64 Studio

When you first install Row64 Studio, it should open automatically when the installation finishes. The installer also adds a shortcut to your desktop that you can double-click.

When Row64 Studio opens, you will see an empty dashboard:

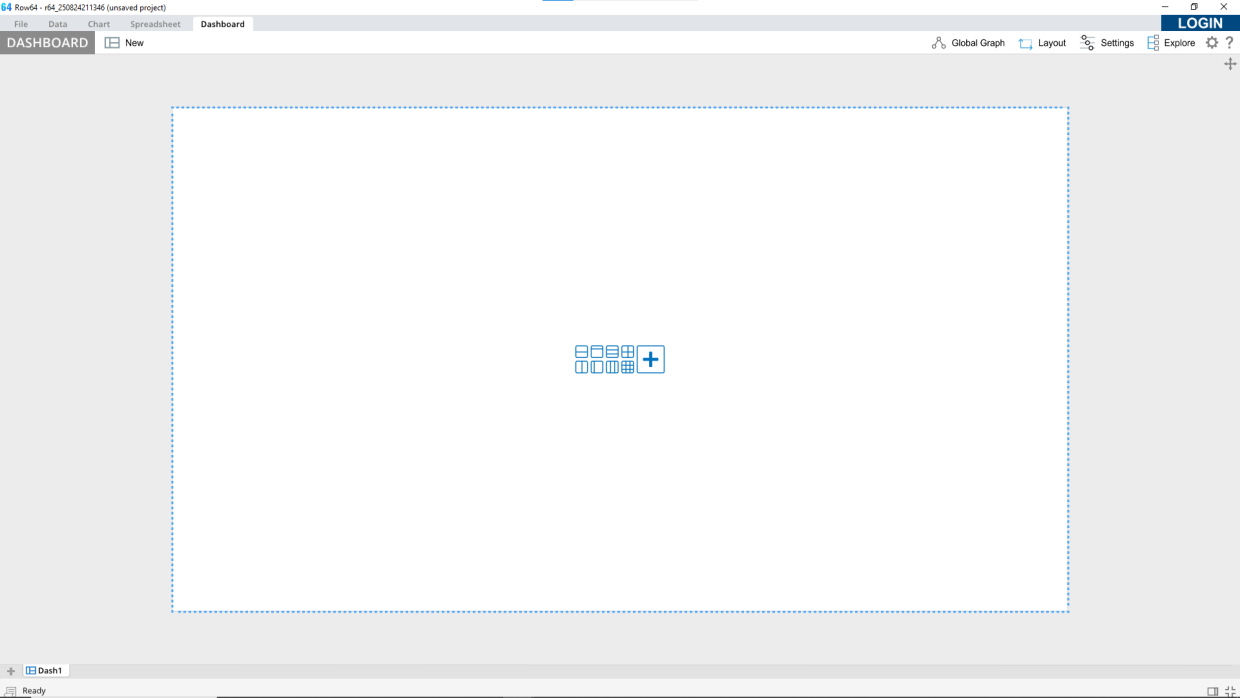

A blank white screen with a blue button in the center.

Connect to a Dashboard Server

Connect to a Row64 Server by clicking LOGIN on the top right. Enter in the Server field:

  • Domain name or IP address
  • localhost (if your server is on the same PC / VM / cloud instance)

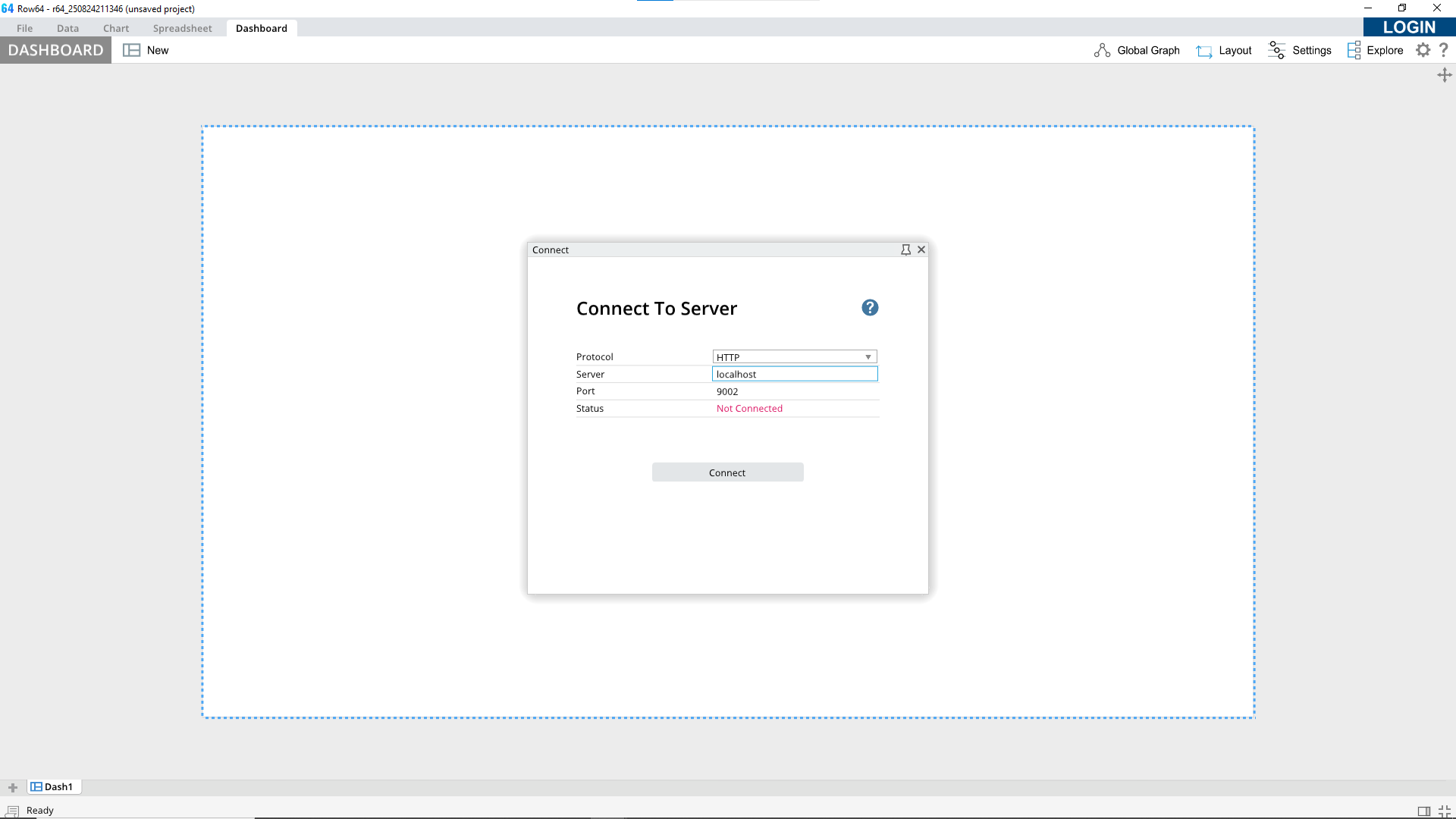

A white screen with a blue button that says Connect to Server.

For more information on connecting to Row64 Server, please see the following document:

Modify the Dashboard and Load Data

On the dashboard, click the plus button to add new charts and dashboard elements.

If you want to start by loading data, flip over to the “Data” tab at the top and load some example Server Data.

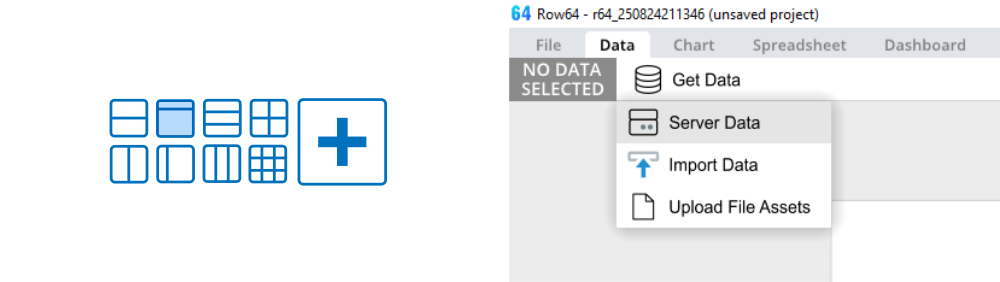

A green screen with a blue button on it.

Browse Example Dashboards

In the Connect tab, click on the Browse button to see a list of available Dashboards.

Double-click on the Dashboard to open it.

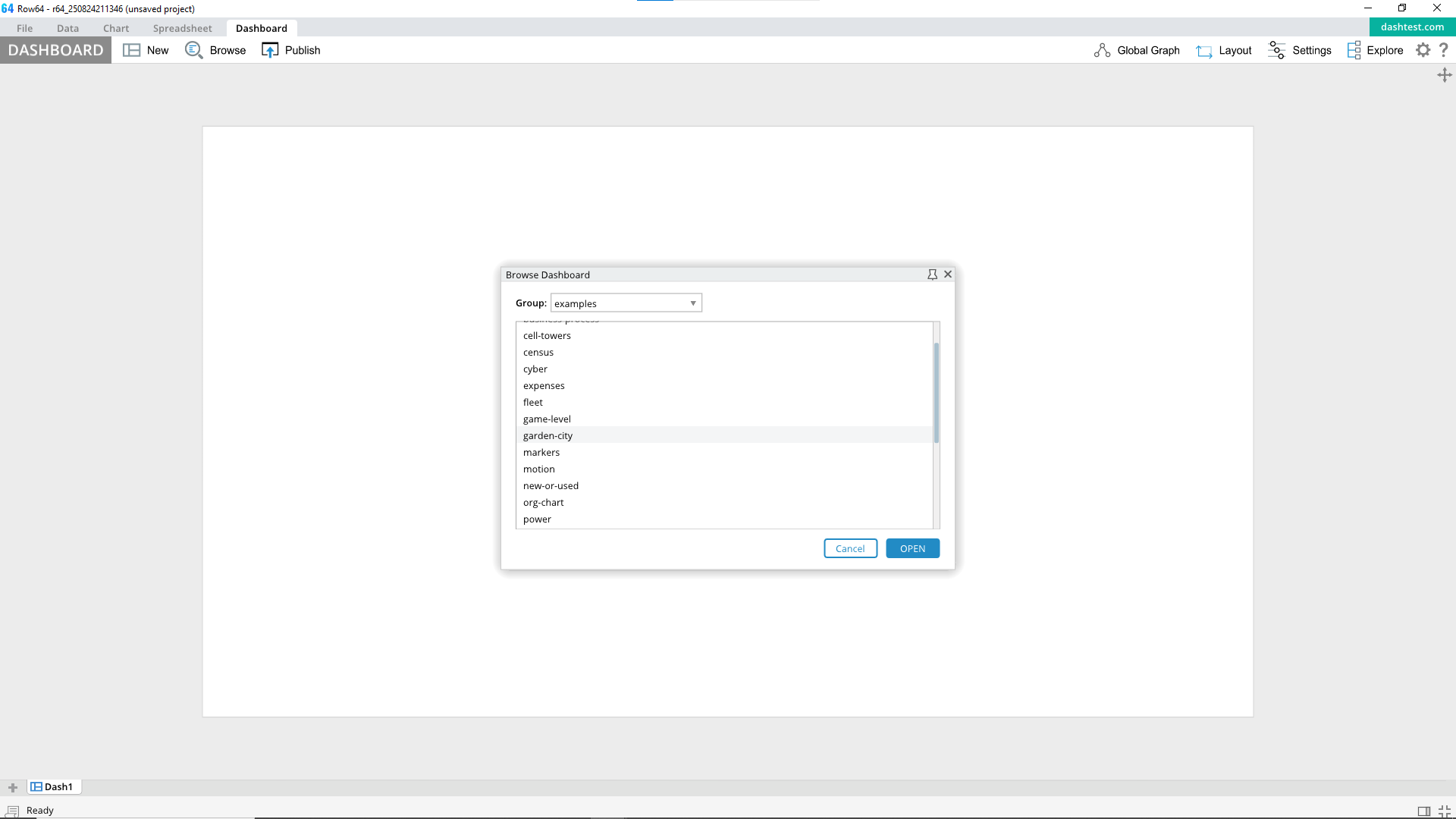

A computer screen with a list of options.

There are many different types of example dashboards.

Hit the arrow button in the top right of any Geo or Diagram to get more selection options.

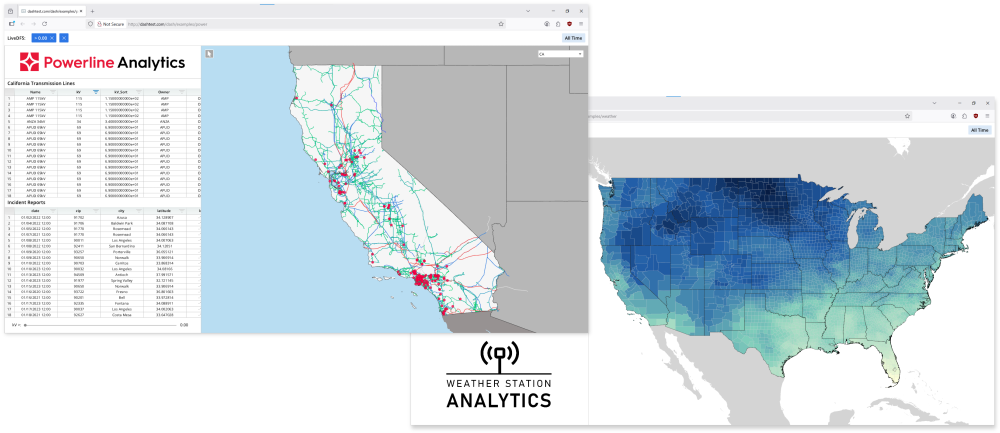

A map of the United States shows the weather station locations. Three computer screens are open to graphs and charts.

Next Steps

For more tips on using and creating Dashboards, refer to the Dashboard Training documentation:
